DESIGNED & MANUFACTURED IN THE USA

Artemis Technologies LLC

Engineered for maximum efficiency, scalability, and performance. Our cutting-edge data centers deliver enterprise-grade reliability with minimized environmental impact.
Contact Us
  • DESIGNED & MANUFACTURED IN THE USA

Artemis Technologies LLC

Engineered for maximum efficiency, scalability, and performance. Our cutting-edge data centers deliver enterprise-grade reliability with minimized environmental impact.
Contact Us

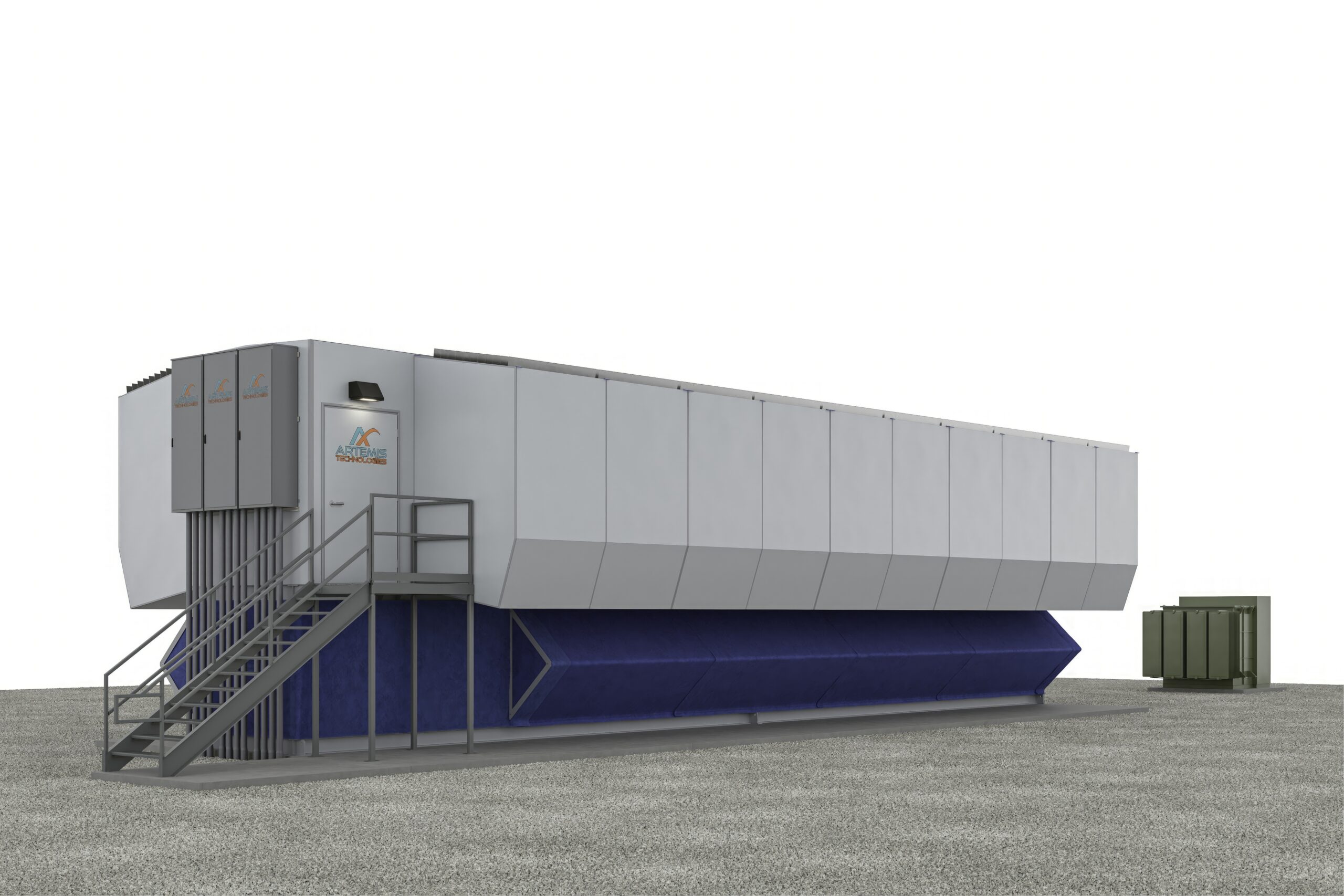

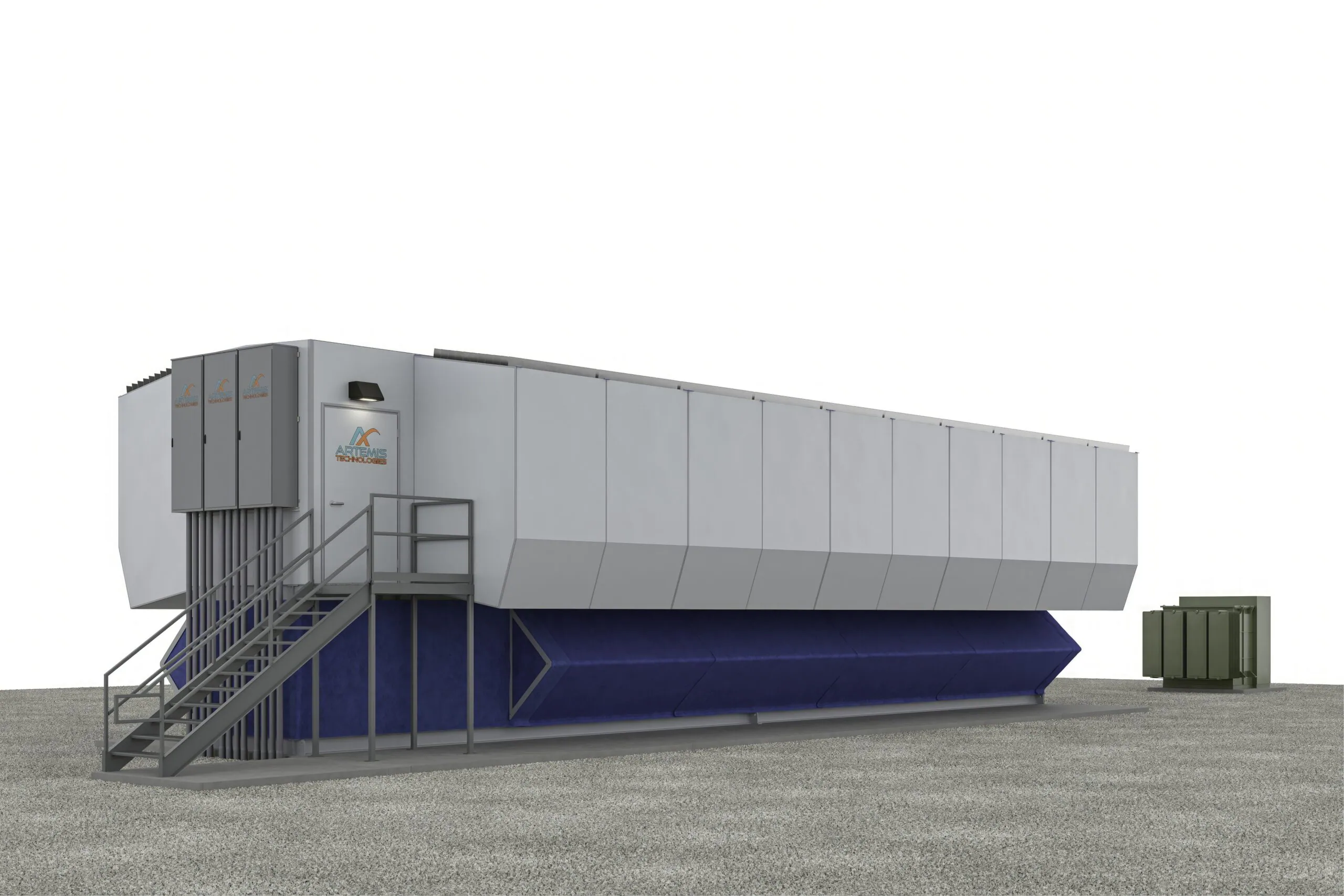

Overview

  • 4.0MW at 80% load factor
  • UL Listed Equipment
  • 6,800 Amps
  • 380v to 480v primary input
  • 1,056x Server Slot Capacity
  • 590,000 CFM
  • Includes Transformer

Transformer

  • 5,000 KVA
  • 15kv, 25kv or 35kv Primary available
  • 433v / 250v Secondary
  • +- 2.5% & 5% Tap Changer Adjuster
  • 600Amp Dead Front MV inputs with Surge Arrestors

Transformer Connection

  • 16x – 4” sub SCH40 PVC
  • 4,000 ft – 500 mcm aluminum wire
  • 4x wires/phase lug connection

Electrical Panels

  • 4x 1200AMP / 2x 1000AMP Panels
  • Service Entrance Rated (no switchgear needed)
  • 100 kAIC Fault Current
  • Arc Flash Protection
  • Emergency Power Of
  • 100% load rated
  • Outdoor rated
  • Breakers accessible while in operation
  • PDU Breakers 100% load rated
  • Surge Protection device
  • Billing grade meter

Filtration

  • Pleated MERV8 poly filter
  • Lower costs, rapid replacement
  • 2x-4x - $400 replacement required yearly
  • Primary filter for dual filtration (optional)

Cooling Fogging System (optional)

  • 10*F – 25*F temperature drops
  • 1000 PSI atomized misting
  • 2.75 low / 5.5 high GPM
  • Fully automated based on temperature & humidity

Fans

  • 10x 60” High Performance Fans
  • 59,000 CFM @ 0.0 WC / 54,500 CFM @ 0.25 WC
  • Direct drive 10HP three phase motors
  • Positive pressure configuration

Positive Pressure Benefits

  • 15% increase in airflow vs hot aisle exhaust
  • Lower temps = less motor stress, less maintenance
  • Reduced load on server fans
  • Controllable filtration

HVAC Automation

  • Smart speed VFD automation with power logging
  • Fans increase & decrease speed based off temperature sensors
  • Automatic power down during curtailments
  • Remotely controllable
  • Emergency alerting

Network

  • PFSense opensource firewall
  • CAT 6A STP 10 GB run throughout
  • Onboard server with Foreman installed
  • Star topology with dedicated rack level switch on individual VLAN

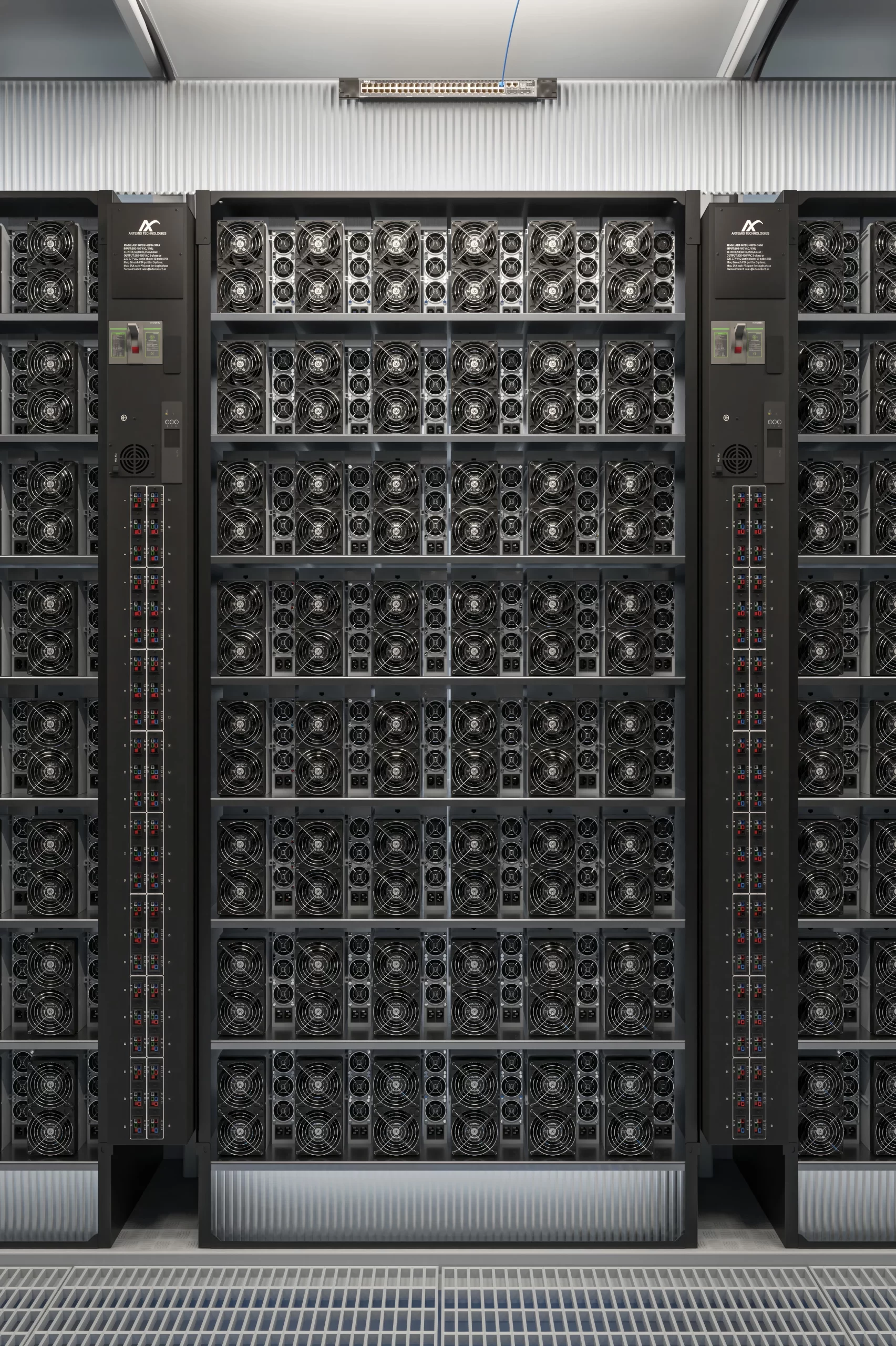

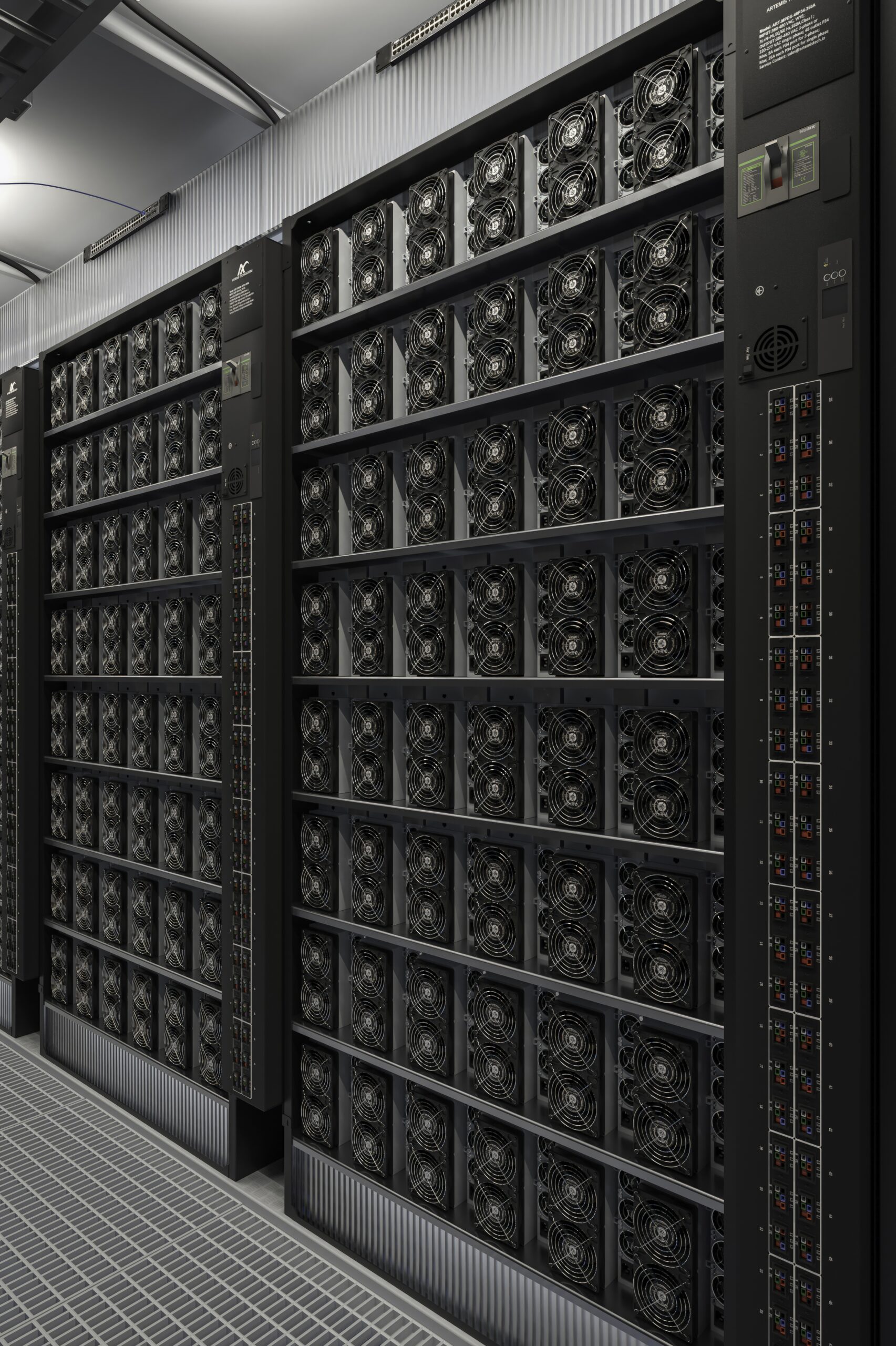

Racks and Shelving

  • 800 lbs rating per shelf
  • Shelves individually fully adjustable
  • Ready for upright or sideway equipment configurations
  • PDU in dedicated slot, maximizing airflow and cable management

Power Distribution Unit

  • 350A, 380 – 480v ETL Listed
  • Feed from 300A panel breaker
  • 48x P33 Sockets
  • 6KW rating per socket
  • Switched and Metered

PDU Automation

  • Each outlet is metered and logged at billing grade accuracy
  • On / Off / Reboot remote control
  • Adjustable electronic trip settings
  • Phase balance and alerting

P33 Socket Benefits

  • Single or Three phase without any changes
  • Phases rotate providing perfect phase balance
  • High ampacity limit
  • Snap connection prevents accidental disconnects
  • IP55 rated

Safety

  • Dual Exit doors
  • Class C fire extinguishers
  • UL 2755 Compliant
  • NEC 2020 Compliant
  • ISO Manufactured
  • ETL Field Certified
